Concrete mixer supply system refers to the accumulation and upgrade of several materials such as stone, sand, cement, water, etc. into commercial concrete. Sand and stone lifting using cantilever shovel method, and loader, plus belt conveyor. The compressed air is used to blow the cement into the bulk cement silo, and the screw conveyor is used to feed the cement scale. Water for stirring is usually supplied by a water pump.
The total supply system of the concrete mixer is composed of three parts: the collection box, the polymerization metering barrel and the aggregate conveying.
Aggregate transportation: There are two ways to transport hoppers and conveyors. The advantages of hopper conveying are small footprint and simple structure. The belt conveyor has the advantages of large conveying distance, high efficiency and low failure rate. The belt conveyor is mainly applicable to the mixing station with aggregate storage tanks, which improves the productivity of the mixing station.
Common problems of concrete mixer supply system:
1. The hopper is biased or stuck. This is mainly due to the inconsistent lengths of the two raised cores or cores. Can be solved by adjusting the length of the wick, adjusting the lower limit of sensitivity, and adjusting the anti-jump device.
2. After the hopper is removed, the fall cannot be controlled. This is mainly due to the failure to repair or replace the travel switch.
3. The overheating of the winch is mainly caused by improper clearance of the braking device. Adjust the motor brake immediately after discovery.
4. The feeding door of the batching machine is not working properly. The main reason is that the gap between the door and the door frame is too large or the door is deformed. The door was blocked by sand and gravel. Correct the material door or replace the material door or rubber plate.
5. The cylinder force is small, you need to check the air pressure or repair the cylinder.

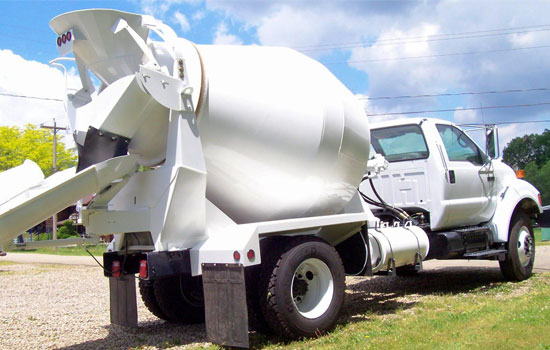

Sinoroader has self loading concrete mixers of different models for your different needs, feel free to contact us if you're interested.
