Mobile Concrete Batching Plant YHZM-30
Model
YHZM-60
YHZM-30
Capacity
60m3/h
30m3/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

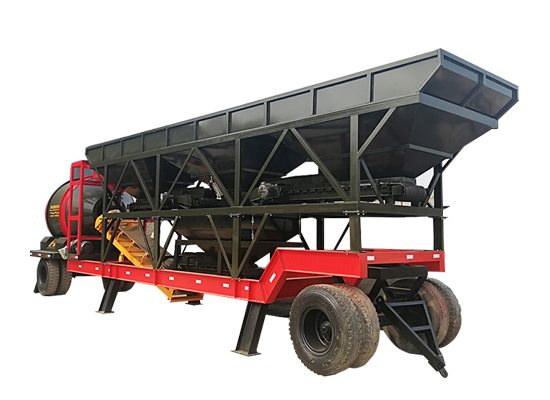

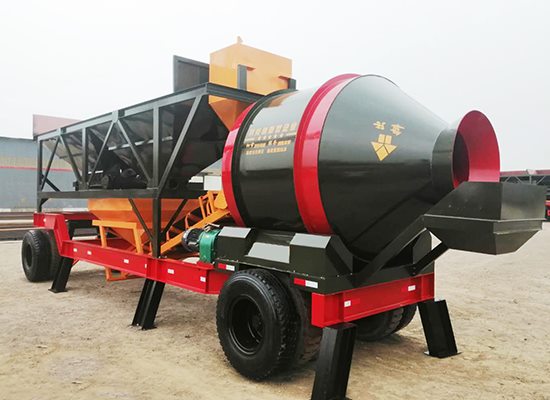

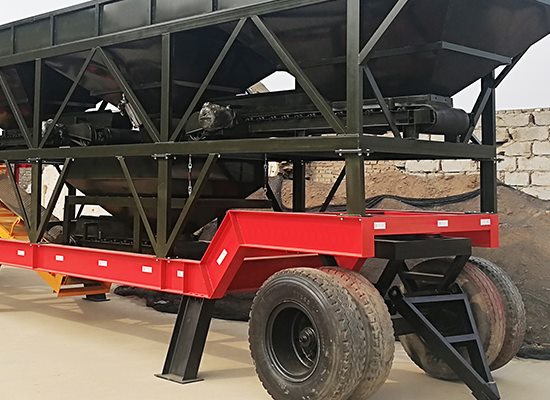

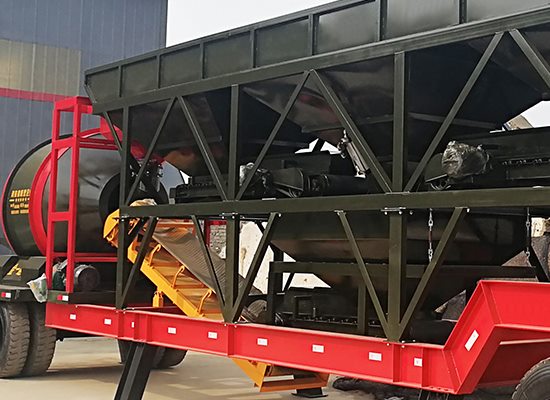

YHZM30 30m3/h mini mobile concrete batching / mixing plant is new designed mobile concrete plant, with the lowest cost, the mixer is JZM500 rotary mixer, the discharge height is 1.7m . The plant (don't include cement silo) can be loaded in one 40HC container, the sea freight is also the lowest. YHZM30 mobile concrete mixing plant combines batching machine, hoist and drum mixer, water supply system, electric control system and pneumatic system on a mobile unit (with tires and traction pins at the bottom), which is very suitable for frequent transitions. Work environment. Compared with the fixed mixing station, since the water, electricity and gas lines of the station are all connected at the
factory, only the cement silo and the screw machine (optional) need to be installed at the construction site, and it can be put into production in 3 hours, which is very fast and convenient.

1. Aggregate batching and transferring is automatic and precise;

2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;

3. The whole plant chassis can be moved easily, don't need to be separated and assembled;

4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;

5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.

Model YHZM30
Output in theory 30m3/h
Aggregate bin capacity 4x3.5m3
Measuring Scope & Precision Aggregate 1250kg±2%
Cement 300kg±2%
Water 150kg±2%
Total power 35kw(Does not include accessories)
Power supply 380V/50Hz
Discharge height 1.7m
Machine quality 8.5t(Does not include accessories)
Drag speed ≤40Km/h
Dimensions(LxWxH) Working status 12m x 2.58m x 4.47m
Transportation status 12m x 2.1m x 4.18m
