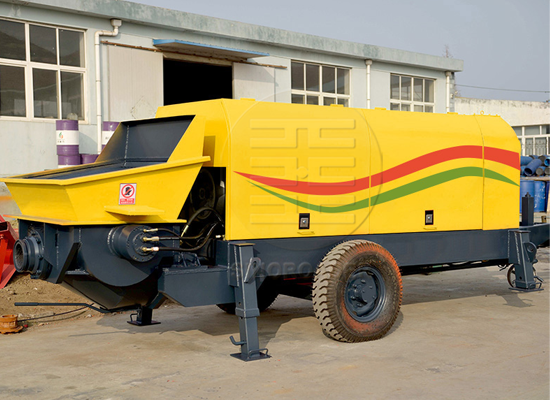

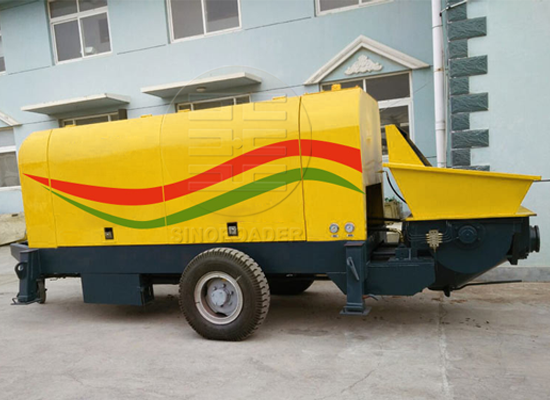

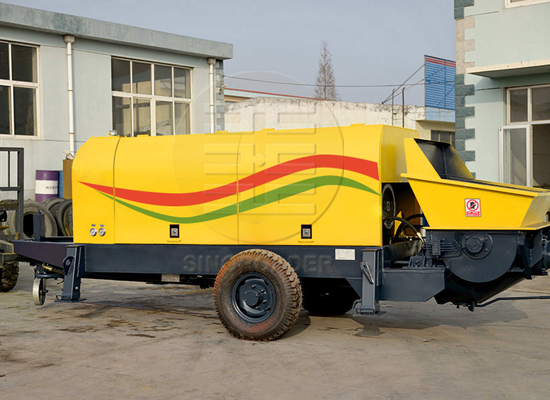

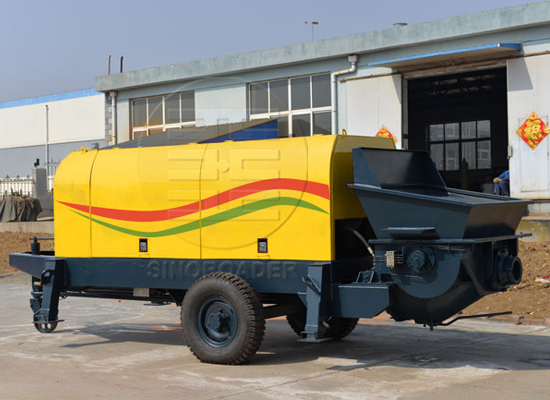

Trailer Concrete Pump - Trailer-Mounted Pump Manufacturers HBTS80-13-129R
Model
HBTS40-12-82R
HBTS60-12-82R
HBTS80-13-129R
Capacity
40/26m3/h
60/36m3/h
84/45m3/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

Concrete trailer pump, also known as concrete pump, consists of pump body and conveying pipe. It is a kind of machine that take advantage of pressure to continuously transport concrete along pipelines, which is mainly used in building, bridge and tunnel construction and so on.

The small model concrete pump is smaller, lighter and easy to be moved than the large model concrete pump.

Efficient pumping system
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
Excellent electric control system
Strong power system
The main power could be adjusted by the user;
The optional diesel power includes famous brands such as Volvo, Shangchai, Caterpillar and Weichai.
The optional main oil pump is Rexroth or Kawasaki.
Reliable hydraulic system
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.
A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete. The concrete is delivered freely.
Efficient pumping system
Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
The large torque mixing system features large torque and easy to disassemble, which is convenient for the disassembly of the mixing axle and repair.
Pumping displacement stepless adjustment: achieve the stepless adjustment of the pumping speed. Change the pumping displacement according to the operation condition.

Items HBTS40 HBTS60 HBTS80
Max. theo. concrete output(L./H) M3/h 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 10/7.6 13/7 16/11

Max. Theoretical Vertical

Conveying Distance

m 120 180 200

Max. Theoretical Horizontal

Conveying Distance

m 500 800 800
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensionslength×width×height mm 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 4500 6500 6900
