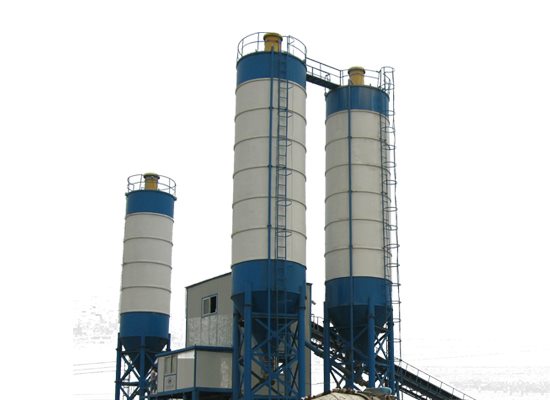

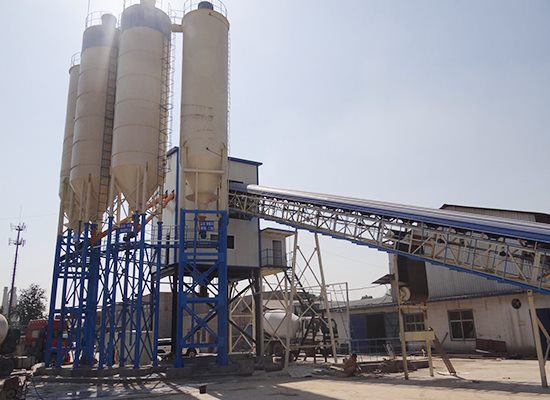

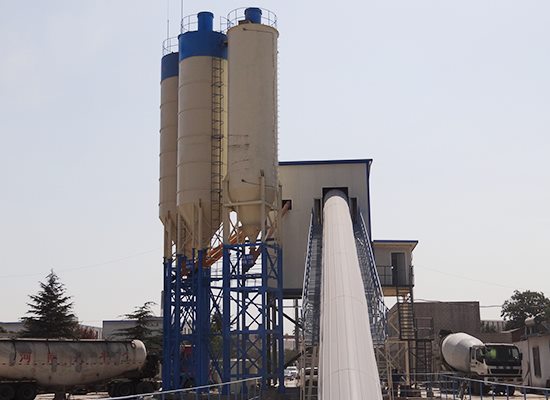

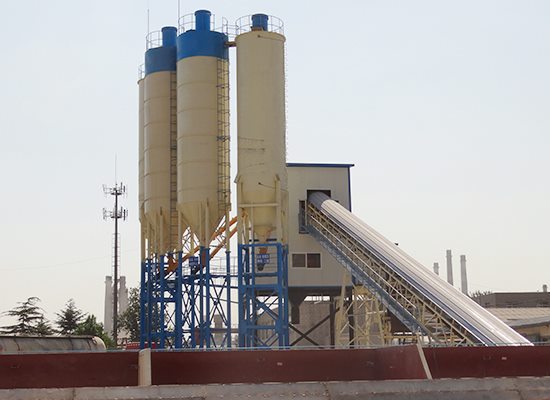

Stationary Belt Conveyor Concrete Batching Plant HZS-90
Model
HZS-90
HZS-120
HZS-180
Capacity
90m³/h
120m³/h
180m³/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

Stationary concrete batching plant is suitable for industrial, civil construction, roads, railways, bridges, electric power, water conservancy, port terminals, airports and other projects. It can be used as a mixing equipment for commercial concrete production, and combined various forms different specifications concrete batching plant price according to the needs of different users.

1.Belt type concrete batching plant uses belt to transport aggregate from the weighing machines to the mixer.

2.It has good points including high efficiency, energy saving and even mixing.

3.It is preferred by big construction companies and foreign.



Advantages:

1.Batching system

The optimized vibration lining plate structure, together with the design of large-inclined-angle and eccentric-pin arch-breaking, plus the adjustable pressure reducing plate, can guarantee the unloading efficiency, stable performance, safe production, and comfortable use.

2. Conveying system

Replaceable frictional rubber coating roller and it can be completed in half an hour. The water cleaning plus the five-pass in addition to removing foreign body mode makes the belt not vulnerable and the equipment more durable.

3. Powder weighing system

Optimize the structure of the screw device, improve the weighing frame structure, more scientific breathable design, multiple accurate measurements for powder escort, so that the measurement data more accurate, more stable weighing performance.

4. Liquid weighing system

Upgrade the water storage tank, and realized the overbalance of the coarse and fine metering, to ensure the accurate and controllable liquid weighing; more with independent admixture said, further accurate, refined measurement data, highly ensure the quality of concrete.

5. Dust removing system

Equipped with pulse bag filter with dust removal efficiency up to 99.9%, it's easy maintenance; Adopt the big fan to take the initiative to draw the air, balance the air pressure between each system, ensure the weighing accuracy and blanking speed stable.

6. Mixing system

Adopt double spiral belt mixer, stable and reliable, easy to clean (only clean once a month). Its excellent performance and productivity performance can save about 15% mixing time and 20% production energy consumption. Scientific gate discharge hopper perfectly realizes efficient discharge without splash and drip.

7. Intelligent control system

Self-developed dual-computer synchronous production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop; Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.

Model HZS90 HZS120 HZS180
Theoretical capacity(m³/h) 90 120 180
Mixer Model JS1500 JS2000 JS3000
Power(KW) 2×30 2×37 / 4×37 2×55 / 4×55
Discharge capacity(m³) 1.5 2 3
Max.aggregate size(gravel/pebble)(mm) ≤60/80 ≤60/80 ≤60/80
Aggregate bins Volumes 12 20 / 2×20 20 / 2×20
Belt conveyor capacity(t/h) 450 600 800
Weighing scope Aggregate(kg) 3000±2% 4×(2000±2%) 4×(3000±2%)
Cement(kg) 800±1% 1000±1% 1500±1%
Coal ash(kg) 200±1% 400±1% 600±1%
Water(kg) 300±1% 400±1% 600±1%
Additive(kg) 30±1% 40±1% 60±1%
Discharging height(m) 3.8 3.8 3.8
