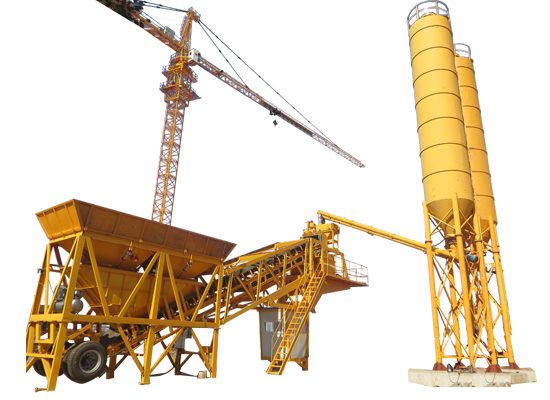

Mobile Concrete Batching Plant YHZS-25
Model
YHZS-25
YHZS-50
YHZS-35
Capacity
25m³/h
50m³/h
35m³/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

YHZS25 mobile cement plant adopts twin-shaft compulsory mixer with good mixing quality, high productivity. The dry rigid, semi-rigid, and plastic and various proportions of the concrete can be mixed well in the ideal time by the mixer.

Mobile Concrete Batching Plant YHZS Series Twin Shaft Concrete Mixer
We mainly have types of YHZS-25/35/50/75 for your selection. And they are equipped with corresponding YHZS series twin shaft concrete mixers: JS500/750/1000/1500. Some portable concrete mixer batching plants are equipped with double spiral belt concrete mixer. Compared to YHZS series concrete mixer, this kind of concrete mixers reduce the mixing time to half, and the evenness is increased by 15%.


Advantages of YHZS-25-75 Mobile Concrete Batching Plant

1. YHZS mobile concrete batch plant is composed of the systems of material supply, weighing, mixing and electric control;

2. YHZS mobile concrete batch plant can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor with the loader to feed material;

3. Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;

4. YHZS mobile concrete batch plant can be controlled by computer and manually, and then can be easily converted through the switch

YHZS mobile concrete batch plant is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, and port and hydro power station.

Model Belt Type
YHZS-25 YHZS-35 YHZS-50
Theoretical Productivity (m³/h) 25 35 50
Mixer Model (Mixer Output L) JS500 JS750 JS1000
Mixer Power (kW) 18.5 30 2×18.5
Mixing Cycle Period (s) 67 72 72
Rated Input Volume (Model of Batching Machine L) 800 1200 1600
Max.Aggregate Size (mm) Φ60 Φ60 Φ60
Standard Aggregate Bin Capacity (m³) 2×3 2×5 3×5
Category of Aggregate 2002/3/4
Powder Storage Silo (ton) (Optional) 1×50 2×50 1×100
Max. Discharging Height (m) 3.8 3.8 4.1
Weighing Range & Accuracy of Aggregate (kg) (300~1500±2% (300~1500±2% (300~3000±2%
Weighing Range & Accuracy of Cement (kg) (100~300±1% (100~300±1% (250~900±1%
Weighing Range & Accuracy of Water (kg) (60~150±1% (60~150±1% (80~300±1%
Weighing Range & Accuracy of Additive (kg) / (8~20±1% (8~20±1%
Overall Weight (ton) ≈15 ≈22 ≈26
Installation Power (kW) ≈61 ≈73 ≈92
Power Supply 380V/220V/415/440V, 50/60HZ, 3Phase
