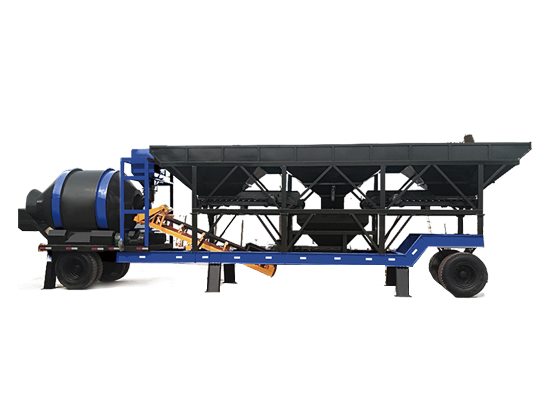

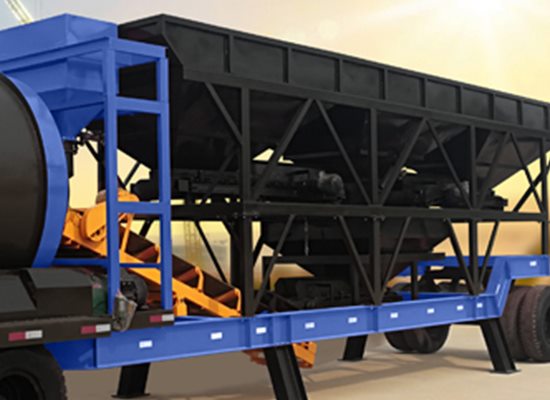

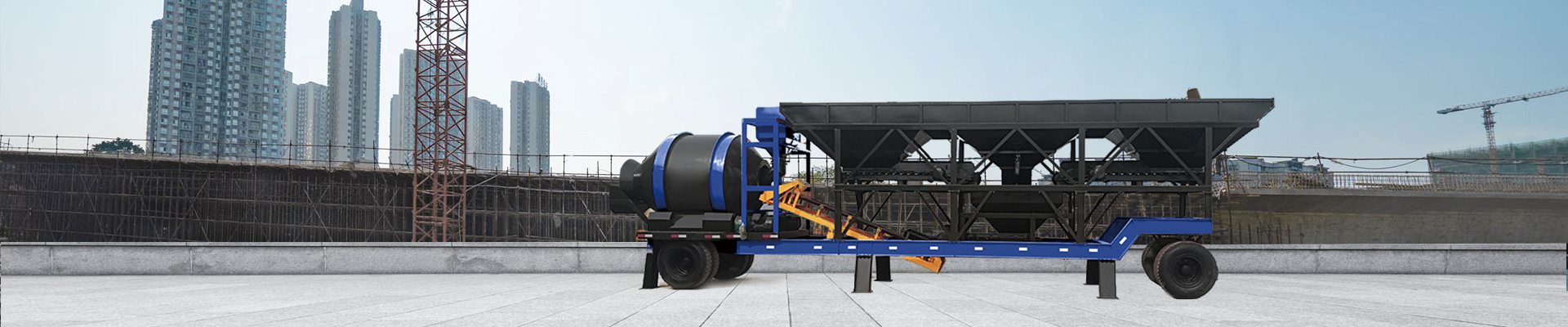

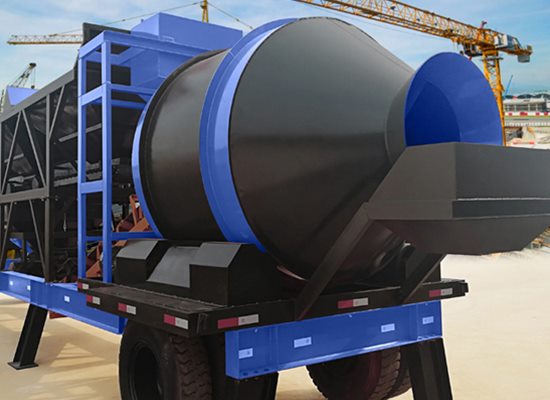

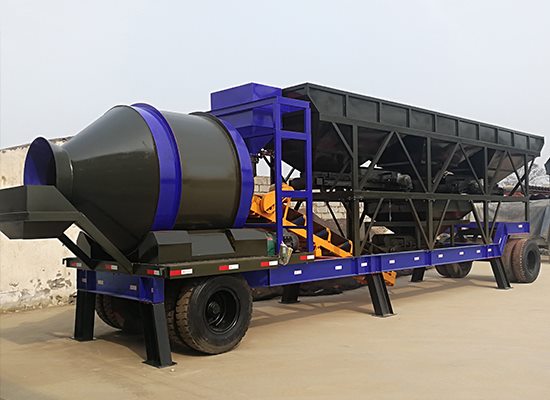

Mobile Concrete Batching Mixing Plant YHZM-60
Model
YHZM-60
YHZM-30
Capacity
60m3/h
30m3/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

YHZM60 Fully mobile concrete batching plant with drum mixer, which is self-falling type bipyramid reversed discharging concrete mixing machine.  Aggregate batching and transferring is automatic and precise; Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging; The whole plant chassis can be moved easily, don't need to be separated and assembled; This plant is designed to work without foundation, even cooperate working with horizontal cement silo; Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.

1. Rapid and easily to assemble and disassemble, conveniently to transport.
2. All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
3. The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
4. For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
5. Top-quality configuration, high reliability, accurate measurement, easy operation.
6. The main electric components on concrete mixer reducers, scale load cells and control system are famous brands, which can reduce the failure rate and increase the scale accurate of the equipment.

Item YHZM60
Capacity 60m3/hr
Concrete Mixer Model JZM1500 concrete mixer
Discharging voulme 1500L
Charging voulme 2200L
Aggregate Batching Model PLD1600
Machine Storage bins volume 5m3*2 or 5m3*3
Motor power 4kw*2
Weighing System Cement weighing ±1%
Water weighing ±1%
Additive weighing ±1%
Control System Automatic central control system
Chassis Travel Tyres 1000mm
System Max. drag speed 30km/hr
Discharging Height 1300mm
