Self Loading Mobile Concrete Mixer SR-2600
Model
SR-2600
SR-1500
SR-3500
SR-4000
Capacity
2600L Discharge Capacity
1500L Discharge Capacity
3500L Discharge Capacity
4000L Discharge Capacity
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

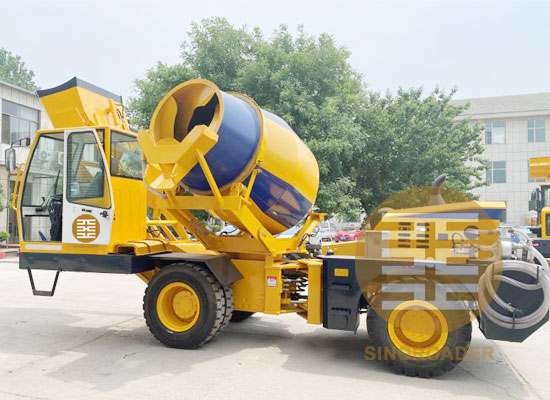

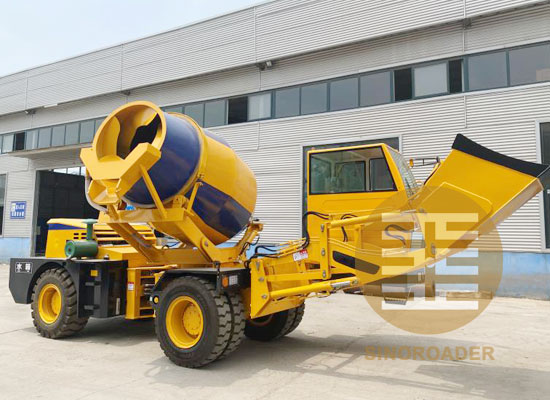

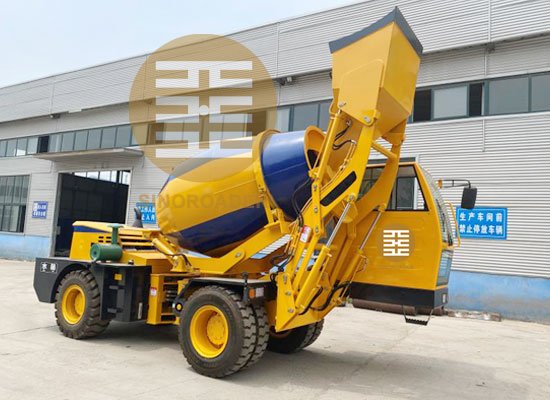

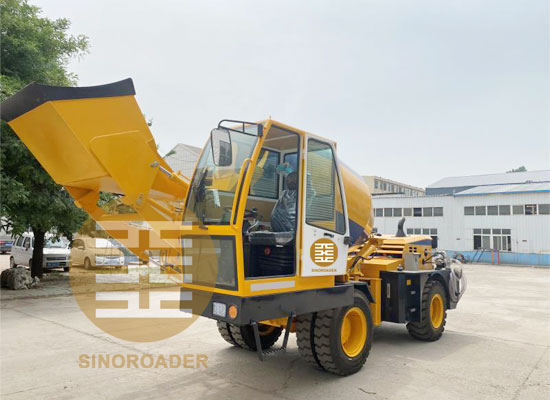

Sinoroader Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go.

In rural areas and many small construction sites, it is not worthwhile to use large-scale mixer trucks because they have sand and stone cement, but they need to be artificially mixed, and they need too much manpower, and they are not efficient. We all know that The labor cost is especially high, so the above problems are even more serious, and the small self-loading self-unloading self-mixing concrete mixer truck. Domestically known as the four-wheeled multi-purpose concrete mixer truck.

& Mixing Station + Loader + Concrete Mixer Truck

& One Machine With Multiple Functions

& Compact Structure

& Fast Relocation

& High Efficiency

& Accurately Mixed

& Mixed Evenly

& Saving Labor


The self-feeding concrete mixing tank is mainly composed of a mixing drum and a charging hopper.

Mobile Mixer Product Features:

1. One Machine= Four Machines

This mobile mixer can replace generators, trucks, loaders and mixers. It replaces the traditional mixing method and saves equipment costs.

2. Automatic Mixing

After the aggregate and cement enter the mixing drum, they can be perfectly mixed through the water flow in the tank. The unique 4mm "T" type idle double screw ensures the mixing quality and concrete quality (if needed, the mixing speed is fast, one bucket, one minute, stirring at any time, stirring while walking, saving time, after the machine is finished loading) It can be driven directly to the unloading site and can be stirred during driving.

3. Automatic Feeding System

Based on a unique hinged hydraulic shovel, the ingredients can be loaded easily and accurately; the bucket's built-in blades automatically cut the cement bag to avoid waste of material; all ingredients can be smoothly and quickly fed into the mixer from the bucket. It replaces the traditional loader loading method, saving the cost of purchasing the loader. Reduce the environmental pollution and maximize the use of the material yard area. The feeding time is faster and the feeding accuracy is more accurate.

4. Easy to Move

Can be adapted to any venue for shipping. The four-wheel drive hydraulic drive and good configuration allow it to crawl on a 30% slope at full load. Equipped with a center of gravity transfer system, the center of gravity can move back and forth when going uphill and downhill. Can effectively increase overall security.

5. Suitable For A Variety Of Special Environments

The automatic loading mobile concrete mixer is suitable for engineering construction in various special environments, crowded urban areas and remote areas. It can be used for concrete road maintenance, bridge tunnel construction and township road construction. Increase work efficiency. Provide customers with the best solution for mixing and pouring concrete.

Equipment Model SR1500 SR2600 SR3500 SR4000
Drum geometrical capacity 2500L 3900L 5400L 6000L
Discharge Capacity 1500L 2600L 3500L 4000L
Engine Model Yunnei Yunnei Yuchai Yuchai
Rated Power 55kw 76kw 92kw 95kw
Transmission 4 wheels drive,2 steering 4 wheels drive,2 steering 4 wheels drive,2 steering 4 wheels drive,2 steering
Fuel tank 95L 105L 155L 175L
Total hydraulic system capacity 95 liters 105 liters 115 liters 175 liters
Oil tank 16 liters 16 liters 16 liters 16 liters
Reducer HJ80-43 HJ80-43 HJ80-43 KY07-5-J
Hydraulic Pump FC50/40 CBGQ 2050/2032 CBGQ 2040/2080 Interpump
Hydraulic Motor BM5-160 BM5-160 BM5-160 HAA2FM56/61W-VTD527
Water tank 380L 650L 850L 950L
Water supply Time relay Time relay Time relay Time relay
Overall dimensions(L*W*H) 6100*2300*2490 7400*2400*3200 7100*2350*3560 7400*2500*3400
Wheelbase (mm) 2600 2800 2900 2480
Curb Weight (kg) 4800 6500 7500 7500
Drive Form Torque converter Torque converter Torque converter Torque converter
Drum rotate / 270º 270º 270º
Drum mixing speed (r/min) 13 13 13-20 17
Chassis Max.Speed (kn/h) 30 30º 30 35
Maximum grade 30º 30 30º 45º
Maximum turning radius (mm) 5270 5300 5300 4800
Minimum ground clearance (mm) 280 380 380 330
