Concrete Boom Pump Truck
Model
Concrete Boom Pump Truck
Capacity
Max. Theor. Output(high/low pressure):75/125m3/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

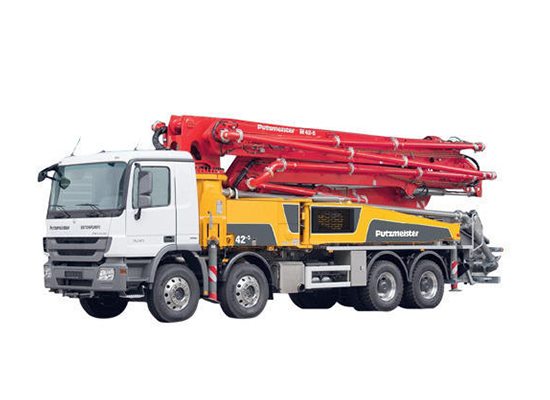

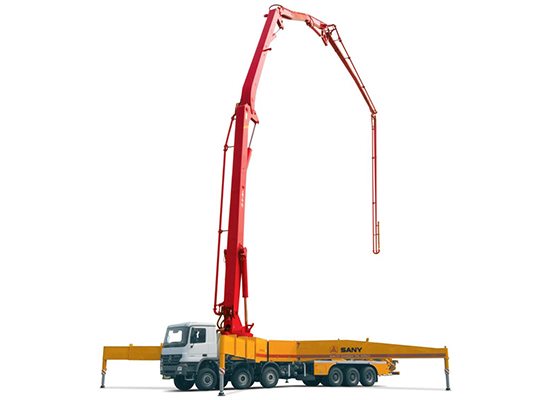

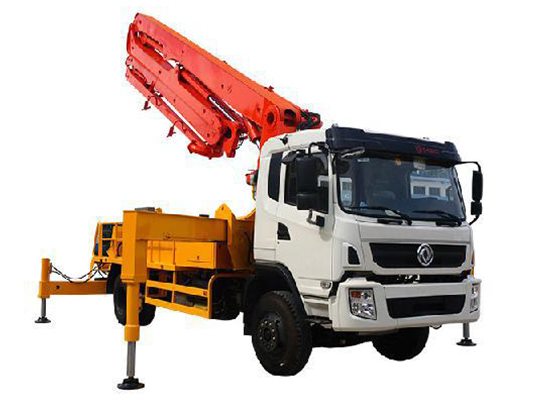

Concrete boom pump truck, also called concrete pump truck, concrete boom pump truck, is extensively used to place concrete to hard-to-reach places accurately with controlled articulating robotic arm (boom) mounted on the truck. Concrete boom truck is the ideal concrete machine to convey the heavy, viscous, abrasive and gravel mixed concrete along the discharge pipe to long distance with quick setup, high efficiency, excellent uptime. The high quality innovative concrete pump truck is engineered with famous brand pump and valve parts and driving system to ensure smooth pumping and consistent concrete flow with intelligent and precise control. It features high performance, fast setup, labor saving, smooth conveyance which is indispensable in construction projects.

1. High mobility, high reliability, high intelligence, high efficiency, low cost, low maintenance cost. .

2. Optimized articulating robotic arm (boom) structure for flexible operation.

3. Automatic and intensive lubrication system.

4. Wide space of Platform loadable pipe.

5. High quality famous brand hydraulic and lubrication components.

6. Intelligent controlling system.

7. Better serviceability, and it allows easier setup and a more simplified operation.

8. Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be immediately and steadily stopped. The end hose is positioned quickly and accurately.

9. Optional truck brands, Chinese truck such as FAW, DONGFENG, SINOTRUK, FOTON or Customized truck such as ISUZU, HINO.

Item Unit Value
Pumping System Max. Theor. Output(high/low pressure) m3/h 75/125
Max. Theor. Concrete Output Pressure(high/low pressure) MPa 10/6
Rated Working Pressure MPa 32
Pumping Frequency(high/low pressure) min-1 15/25
Hopper Capacity L 600
Filling Height mm 1400
Hydraulic System Type Open Loop
Distribution Valve S-valve
Oil Cylinder Dia.×Stroke mm φ125×1800
Concrete Cylinder Dia.×Stroke mm φ260×1800
Hydraulic Oil Cooling Air cooling
Recommended Concrete Slump cm 12~23
Max. Aggregate Dimension mm 40
Placing Boom Structure Type 50-6RZ
Max. Placing Depth m 50
Horizontal Placing Radius m 40
Placing Depth m 39
Slewing Angle ± 270º
Pipe Diameter mm 125
End Hose Length mm 3000
Outriggers Span (Front×Rear×Side) mm 9332×10130×9410
Arm Length The first mm 9760
The second mm 7770
The third mm 7538
The fourth mm 10070
The fifth mm 5805
The sixth  mm 4505
