Concrete Mixing Plant Factory Price HZS-35
Model
HZS-25
HZS-35
HZS-50
HZS-75
Capacity
25m³/h
35m³/h
50m³/h
75m³/h
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

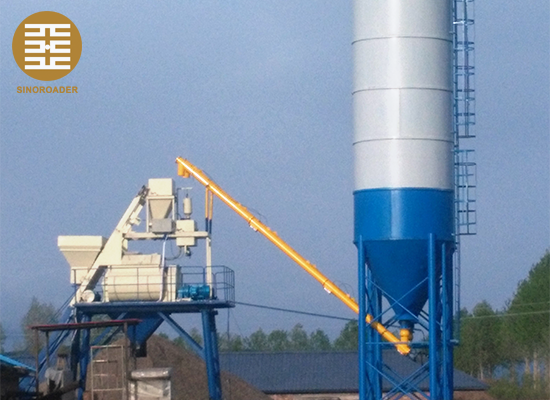

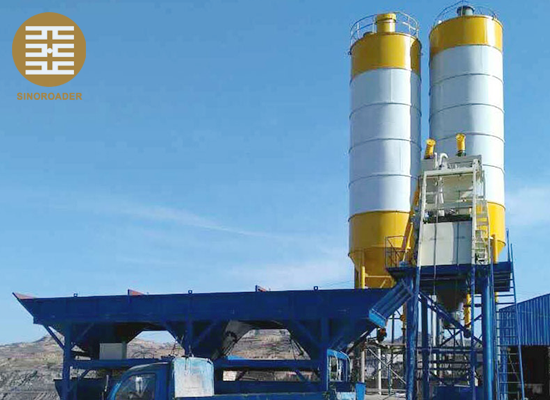

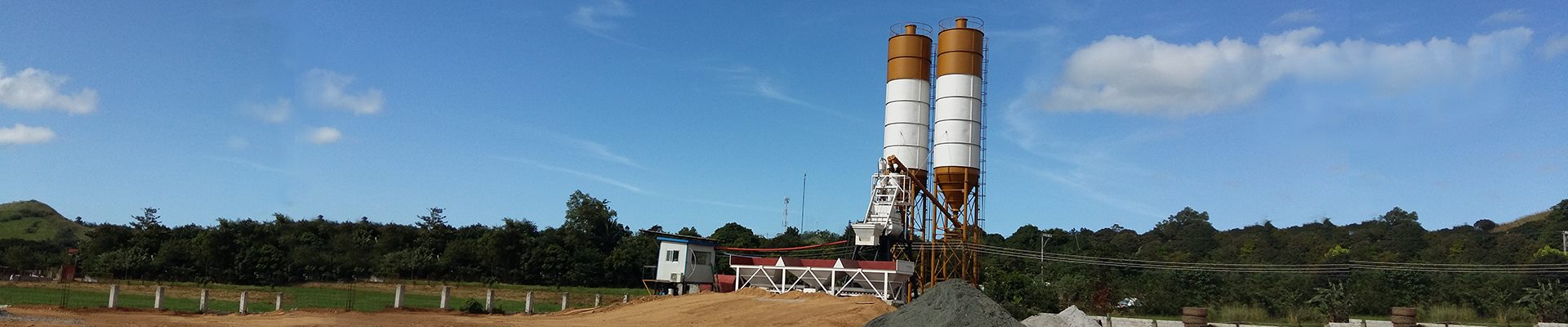

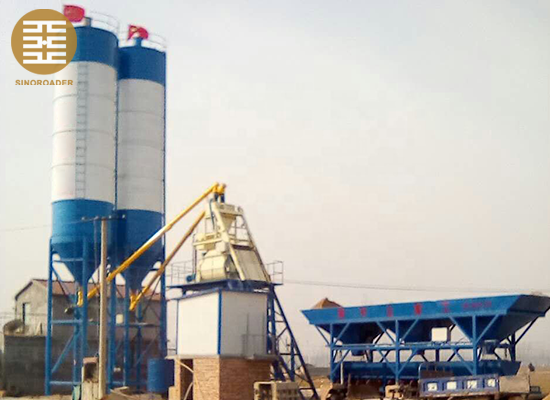

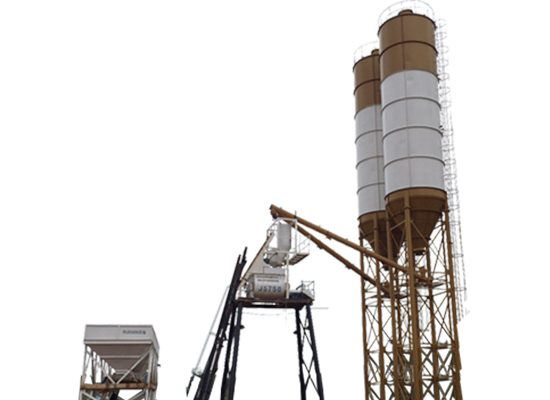

HZS35 mini mix precast electrical ready mixed hopper lift automatic stationary type concrete batching plant price in China is a complete automatic automatic stationary type concrete batching plant consisting of batching, mixing, electric control system and power system. It is a high-precision microcomputer control system and is equipped with separate manual control. Electrical ready mixed hopper lift concrete batching plant has ratio storage and automatic compensation drop. With a printing system, it can automatically complete the scheduled production.

It is suitable for industrial, civil construction, roads, railways, bridges, electric power, water-conserving small concrete batching plant any, port terminals, airports, and other projects. It can be used as mixing equipment for commercial concrete production and combined various forms of different specifications HZS35 mini mix precast concrete batching plant price in China according to the needs of different users.



1.Cost effective

Lower initial investment for quicker profits
Lower aggregate capacity for lower energy consumption

Lower loader fuel consumption results lower operating costs

2.Small&Flexible

Small footprint requires less site space
Enter and exit on both sides. Flexible layout allows setup on any site

3. Hydraulic (pneumatic) door unloading, safe and reliable.

4.Convenient&Fast

Modular design allows an installation time of only 4 days Major components can be quickly and easily relocated

Type spectrum Bucket type
HZS-25 HZS-35 HZS-50 HZS-75
Theoretical Productivity (m³/h) 25 35 50 75
Mixer Model (mixer discharging capacity) JS500 JS750 JS1000 JS1500
Motor Power (kW) 18.5 30 2×18.5 2×30
Cycle Period (s) 67 72 72 72
Nominal Capacity of Mixer (L) 800 1200 1600 2400
Max.aggregate Size (mm) Φ60 Φ60 Φ60 Φ80
Aggregate Silo Capacity (m³) 3×3 3×5 3×8 3×12
Category of Aggregate (Optional) 3 3 3 3
Powder Lot Bin Capacity (t) 1×50 1×50 1×100 2×100
Material Discharging Height (m) 3.8 4.1 4.1 4.1
Accuracy of Aggregate (kg) (300~1500±2% (300~1500±2% (600~3000±2% (1000~3000)±2%
Accuracy of Cement (kg) (100~300±1% (100~300±1% (250~900±1% (300~1800±1%
Accuracy of Water (kg) (60~150±1% (60~150±1% (80~300±1% (200~800±1%
Accuracy of Addtive (kg) / (8~20±1% (8~20±1% (15~80±1%
 Srandard Reference Weight (Ton) ≈15 ≈18 ≈23 ≈30
Installed Capacity (kW) ≈65 ≈75 ≈100 ≈140
