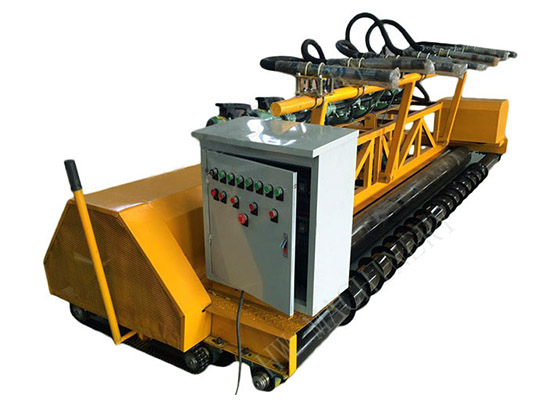

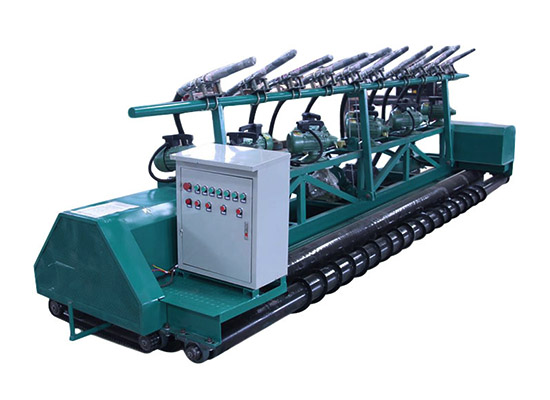

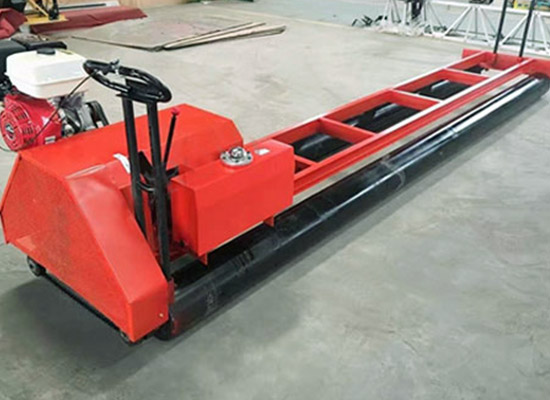

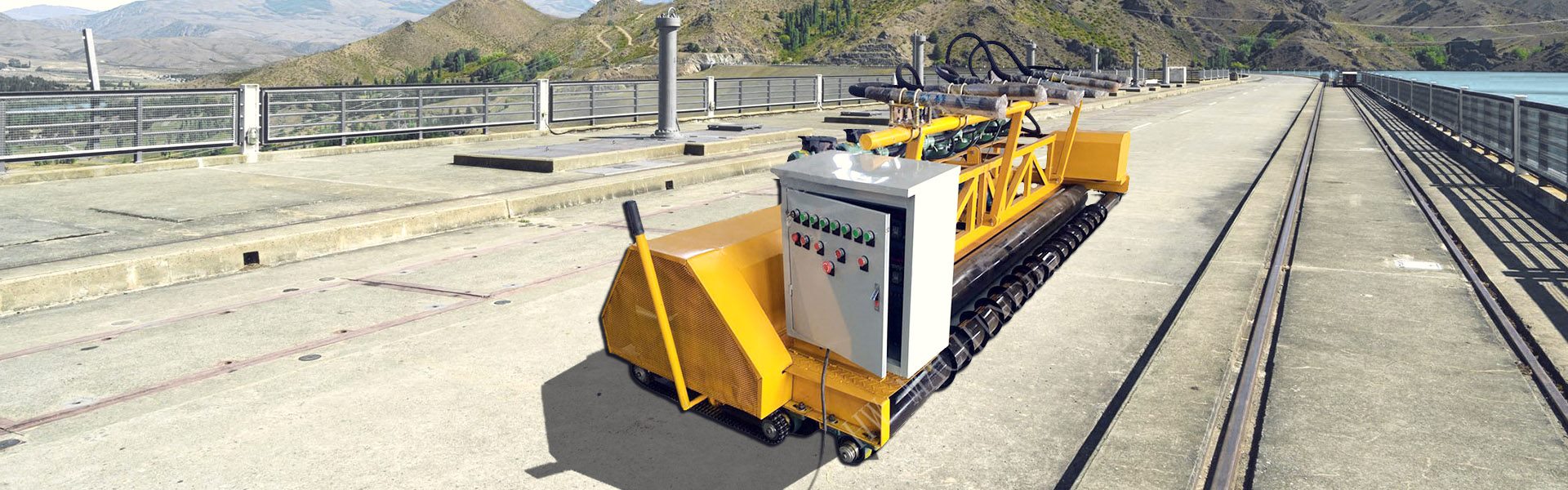

Concrete Pavers Machine - Concrete Road Paving Machines
Model
Concrete Pavers Machine
Capacity
Get Fast Quote
Leave My Questions
HAVE QUESTIONS?PLEASE LEAVE YOUR MESSAGE
*
*
FEATURES
TECH SPEC
VIDEO

Concrete pavers encompass a range of types, including form-riding machines, curb-and-gutter machines, and slipform machines. The most widely used machine for paving concrete roadways is the mainline slipform paver, which extrudes a paved surface without the use of forms.

Concrete pavers encompass a range of types, including form-riding paving machines, curb-and-gutter machines, and slip form machines.

The most widely used machine for paving concrete roadways is the mainline slip form paver, which extrudes a paved surface without the use of forms. Curb-and-gutter pavers can use variously shaped molds to place other than flat surfaces, such as curbs, roadway median barriers, and bridge parapets.

Many pavers automatically change paving widths without stopping the paving process.

Main Features

1.Fitted with original German water cooling engine, with strong and reliable power.

2.Full hydraulic driving system, integration of mechanical, electrical and hydraulic technology, central controlled by multi-controllers, condition showed by graph; with the function of integration failure diagnosis, condition show, alarm etc, the total performance is sharply improved.

3.Scrapper and material distributing device can be controlled from L/R side independently.

4.Broad view for drivers, easy to watch.

5.All control elements locate on console, easy to operate.

6.World call anti-abrasive material is used for bottom plate on smoothing plates and auger.

7.Automatic leveling device, meet the requirement of high grade road within the scope of longitudinal 3mm/m, horizontal slope 2/1000.

8.The crawler travelling devices composed by life-time lubricated supporting wheel and crawler plates is durable with good adhesion, not easy to skid.

All the components are driven by hydraulic circuits, and the machine travels with two crawlers. Moreover, the automatic driving and leveling control systems are equipped in this machine. When working, the paver can accomplish paving, scraping, vibrating, shaking extruding, shaping at one time. Meanwhile, the road edge can be paved with the edge mould, and the reinforce steel bars can be inserted in the road from either middle or side of the paver.

Engine

Imported water-cooled engine, powerful, high-torque reservation, low fuel consumption, emission conforms to Europe environmental standard.

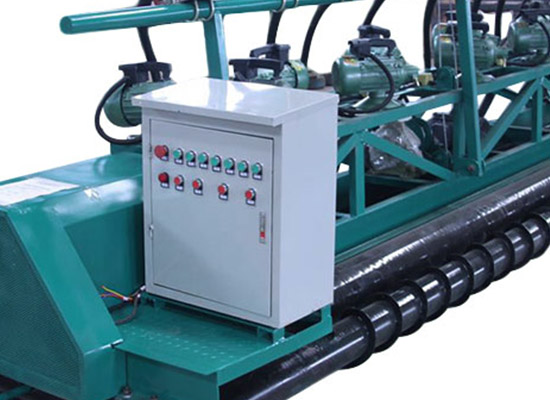

Console

User-friendly interface with display, real-time monitoring for machine status.

Hydraulic Transmission

Hydraulic transmission for vibration bar, step-less frequency conversion to supply optimum frequency for all kinds of concrete.

Control System

Micro-computer system with self-diagnostic capability.

Concrete pavers encompass a range of types, including form-riding paving machines, curb-and-gutter machines, and slipform machines.

The most widely used machine for paving concrete roadways is the mainline slipform paver, which extrudes a paved surface without the use of forms. Curb-and-gutter pavers can use variously shaped molds to place other than flat surfaces, such as curbs, roadway median barriers, and bridge parapets.

Many mainline pavers automatically change paving widths without stopping the paving process.

Paving width 3-8m
Roller diameter 219mm
Quantity of roller 3 rollers and 1
Travel speed 4-9m/min
Max Paving Thickness 300mm
Motor 380V/50hz
Walking Tube Rotation rate 36rpm
Vibration Tube Rotation rate 300rpm
Weight 700-900kg
Dimensions Lx1800x800mm Lx1700x1100mm
