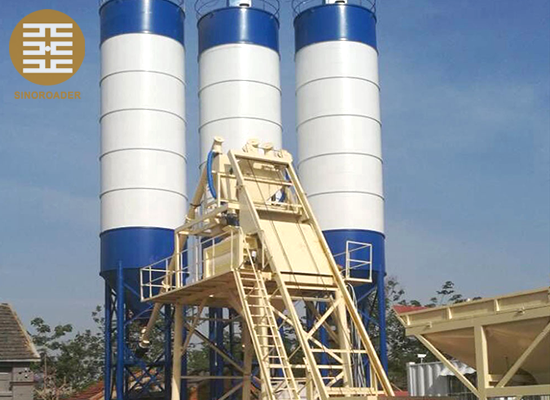

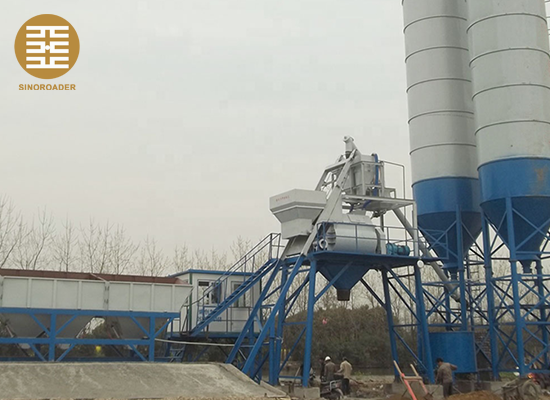

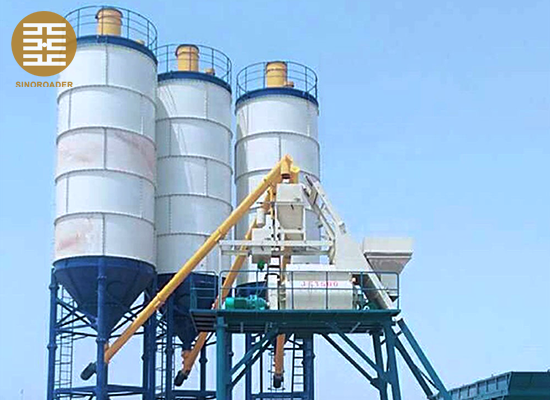

HZS75 Hopper Lift Concrete Batching Plant adopts JS1500 forcing type twin shaft concrete mixer, 75M3 skip hopper ready mixed Concrete Batching Plant has high mixing efficiency and nice effect for dry concrete, plastic concrete and concrete with all ratios. Meanwhile, wet mixed HZS75 Concrete Batch Plant price adopt PLD2400 aggregate batching machine, high quality cement silo, screw conveyor and cement/water/additive weighing scale. It produces 75m3 concrete per hour, suitable for small and medium size construction projects, preformed units and various of concrete. HZS Series stationary concrete batching plan is suitable for the commodity concrete and concrete construction in each kind of architectural project, including water conservancy, electric power, railroad, tunnel, arch of bridge, harbor-wharf and national defense project, etc. The application scope is widely spread.
1. Driving system adopts planetary gear; the gimbals transmission shaft insureat the same speed.
2. With its modular structure, HZS Series stationary concrete batching plant is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system, which has high efficiency. Scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. With its virtue of precise computation, HZS Series stationary concrete batching plant can meet the requirement of every high performance concrete.
6. Human-based intelligent control facilitates the operation greatly.
7. PC+PLC control system ensures the high reliability.
| Type Spectrum | Bucket type | |||
| HZS-25 | HZS-35 | HZS-50 | HZS-75 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Model (mixer discharging capacity) | JS500 | JS750 | JS1000 | JS1500 |
| Motor Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 |
| Cycle Period (s) | 67 | 72 | 72 | 72 |
| Nominal Capacity of Mixer (L) | 800 | 1200 | 1600 | 2400 |
| Max.aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 |
| Aggregate Silo Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 |
| Category of Aggregate (Optional) | 3 | 3 | 3 | 3 |
| Powder Lot Bin Capacity (t) | 1×50 | 1×50 | 1×100 | 2×100 |
| Material Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Accuracy of Aggregate (kg) | （300~1500）±2% | （300~1500）±2% | （600~3000）±2% | (1000~3000)±2% |
| Accuracy of Cement (kg) | （100~300）±1% | （100~300）±1% | （250~900）±1% | （300~1800）±1% |
| Accuracy of Water (kg) | （60~150）±1% | （60~150）±1% | （80~300）±1% | （200~800）±1% |
| Accuracy of Addtive (kg) | / | （8~20）±1% | （8~20）±1% | （15~80）±1% |
| Srandard Reference Weight (Ton) | ≈15 | ≈18 | ≈23 | ≈30 |
| Installed Capacity (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
