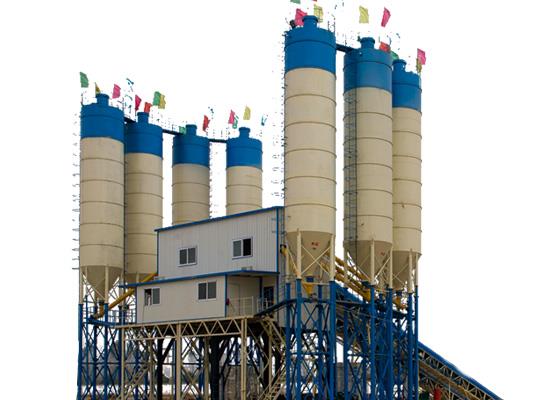

HZS series concrete mixing plant is a compulsory, high efficient equipment. It is an ideal equipment for producing concrete. The main mixing machine adopts JS twin shaft compulsory mixing machine. It can produce plastic-like, dry hard-like concrete and other types of concrete with high efficiency. It is widely used in big and medium construction site, road, bridge and in precast concrete factory.

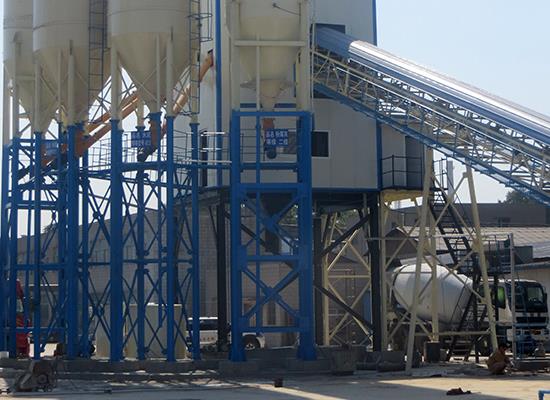

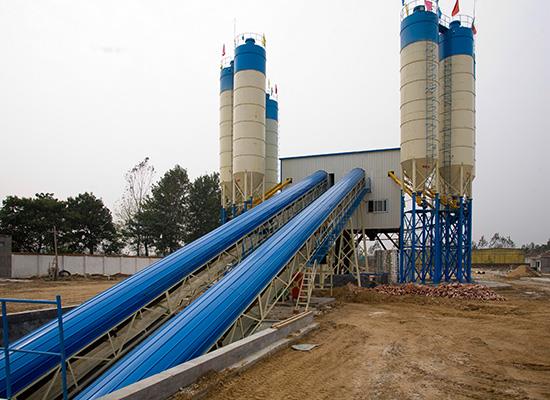

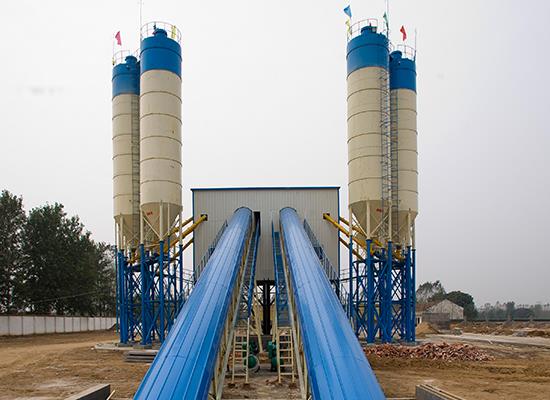

Belt type concrete batching plant has characteristics of stable concrete transportation, precise materials batching and high working efficiency. Therefore it has wide application in commercial concrete production. In the structure, it has long belt to transport batched aggregate, thus it has large land occupation. If you want to invest such a concrete production equipment, you need to prepare a large space.
1.Adopt heavy-duty frame steel structure design,more steady and accurate.
2.Low energy consumption our concrete mixing plant can reduce the energy consumption more than 15% which all detected by authority.
3.More durable high wear-resistant alloy technology , plate life up to more than two times than national standard.
4.More secure mechanical and electrical interlocking safety device satisfy European certification, double insurance to eliminate hidden dangers.
5.More environmental the host system uses negative pressure dust removal, the belt head overall seal, good environmental performance.
Model | HZS90 | HZS120 | HZS180 | |
Theoretical capacity(m³/h) | 90 | 120 | 180 | |
Mixer | Model | JS1500 | JS2000 | JS3000 |
Power(KW) | 2×30 | 2×37 / 4×37 | 2×55 / 4×55 | |
Discharge capacity(m³) | 1.5 | 2 | 3 | |
Max.aggregate size(gravel/pebble)(mm) | ≤60/80 | ≤60/80 | ≤60/80 | |
Aggregate bins | Volumes | 12 | 20 / 2×20 | 20 / 2×20 |
Belt conveyor capacity(t/h) | 450 | 600 | 800 | |
Weighing scope | Aggregate(kg) | 3000±2% | 4×(2000±2%) | 4×(3000±2%) |
Cement(kg) | 800±1% | 1000±1% | 1500±1% | |
Coal ash(kg) | 200±1% | 400±1% | 600±1% | |
Water(kg) | 300±1% | 400±1% | 600±1% | |
Additive(kg) | 30±1% | 40±1% | 60±1% | |
Discharging height(m) | 3.8 | 3.8 | 3.8 |
