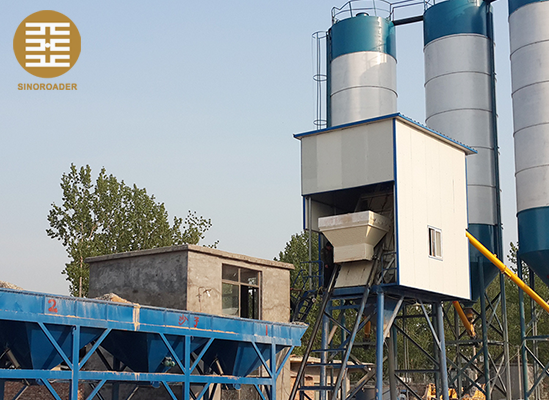

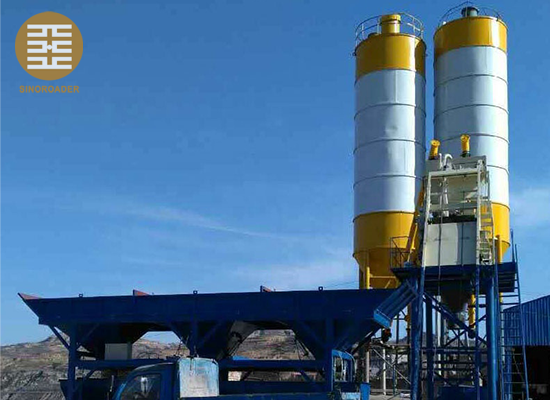

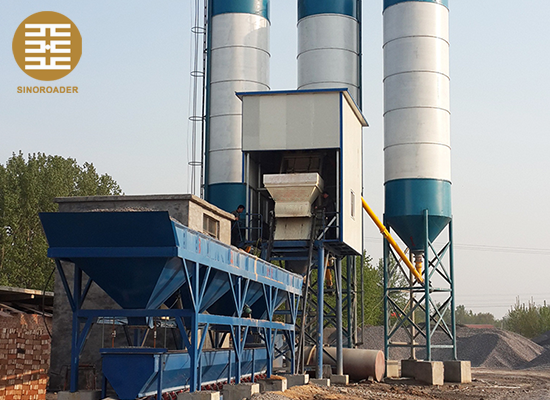

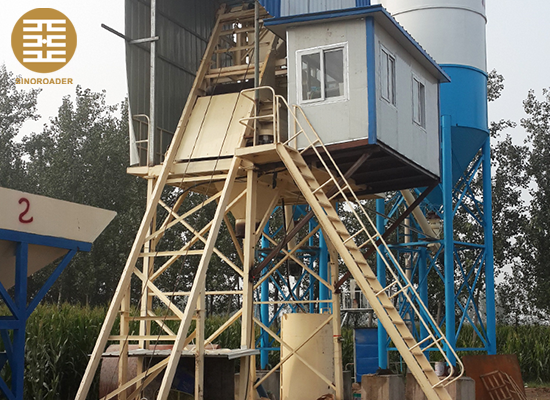

HZS series hopper lift type concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy , the electric power , the railroad, the road , the harbor-wharf and so on.
HZS series concrete batching plant belongs to compulsory and efficiency equipment, It includes JS concrete mixer, PLD batching machine,cement silo and control system. The main machine of this series use JS series double shaft compulsory mixer. It is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
1. Adopt modular structure, installation and relocation is very convenient.
2. Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3. It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency,
4. The overall structure is compact and fashionable, the layout is reasonable
5. T he operation is safe and reliable, its more easy to maintain
|
Type spectrum |
Bucket type |
|||
|
HZS-25 |
HZS-35 |
HZS-50 |
HZS-75 |
|
|
Theoretical Productivity (m³/h) |
25 |
35 |
50 |
75 |
|
Mixer Model (mixer discharging capacity) |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Motor Power (kW) |
18.5 |
30 |
2×18.5 |
2×30 |
|
Cycle Period (s) |
67 |
72 |
72 |
72 |
|
Nominal Capacity of Mixer (L) |
800 |
1200 |
1600 |
2400 |
|
Max.aggregate Size (mm) |
Φ60 |
Φ60 |
Φ60 |
Φ80 |
|
Aggregate Silo Capacity (m³) |
3×3 |
3×5 |
3×8 |
3×12 |
|
Category of Aggregate (Optional) |
3 |
3 |
3 |
3 |
|
Powder Lot Bin Capacity (t) |
1×50 |
1×50 |
1×100 |
2×100 |
|
Material Discharging Height (m) |
3.8 |
4.1 |
4.1 |
4.1 |
|
Accuracy of Aggregate (kg) |
（300~1500）±2% |
（300~1500）±2% |
（600~3000）±2% |
(1000~3000)±2% |
|
Accuracy of Cement (kg) |
（100~300）±1% |
（100~300）±1% |
（250~900）±1% |
（300~1800）±1% |
|
Accuracy of Water (kg) |
（60~150）±1% |
（60~150）±1% |
（80~300）±1% |
（200~800）±1% |
|
Accuracy of Addtive (kg) |
/ |
（8~20）±1% |
（8~20）±1% |
（15~80）±1% |
|
Srandard Reference Weight (Ton) |
≈15 |
≈18 |
≈23 |
≈30 |
|
Installed Capacity (kW) |
≈65 |
≈75 |
≈100 |
≈140 |
