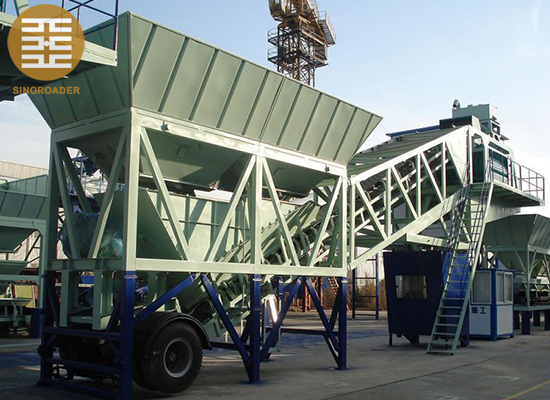

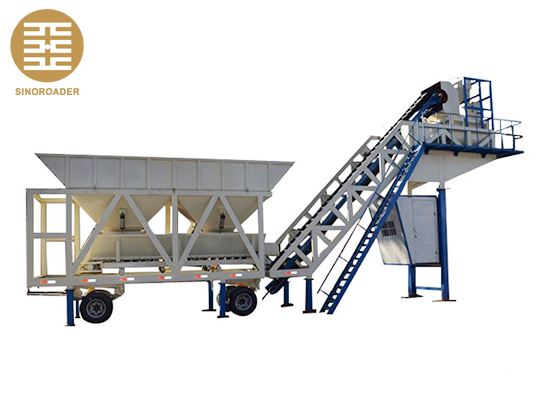

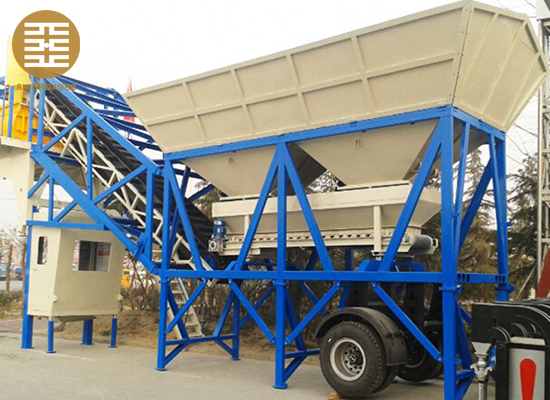

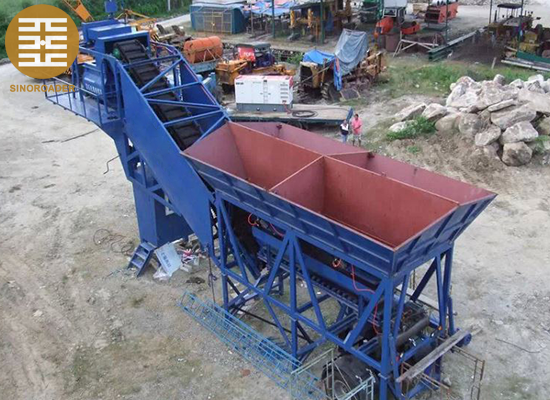

YHZS35 trailer mobile batching plant 35m3/h is one kind of highly integration concrete mixing plant. It is designed for customer which need to change working site frequently. This plant is completely equipped with concrete batching system, mixing system, weighing system and fully automatic control system. We SINOSUN is professional mobile concrete batching plant manufacturer, mobile batching plants produced by us can achieve stable performance. For working process, they are the same as the stationary concrete batching plant, operating method and maintenance, meanwhile, it is with features of easy transportation, convenient assembly and disassembly as well as simple storage management. What’s more, mobile concrete plant is widely used to mix no-slump concrete and fluidity concrete. The whole equipment has less land occupation, and during the usual working process, the maintenance only needs few people and short time, which greatly save the construction cost. Also, mobile cement plant is suitable for new rural construction. Its high mechanization degree brings a lot of convenience to people.
1. It adopts integrated structure, complete machine set installation, so it can move conveniently, and the price is reasonable.
2. Highly precise dosing of water, cement, fly-ash, additive
3. YHZS35 mobile concrete batch mix plant dosing is realized by three-point suspension sensors, and they are all metered separately.
4. The control system is full automatic, and it have function of screen display, matched storage, compensating fall automatic and it can also achieve manual controlling.
5 .The total equipment used standard components, So it maintain conveniently.
Model | Belt Type | ||||
YHZS-25 | YHZS-35 | YHZS-50 | |||
Theoretical Productivity (m³/h) | 25 | 35 | 50 | ||
Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | ||
Mixer Power (kW) | 18.5 | 30 | 2×18.5 | ||
Mixing Cycle Period (s) | 67 | 72 | 72 | ||
Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 | ||
Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | ||
Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 3×5 | ||
Category of Aggregate | 2002/3/4 | ||||
Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 | ||
Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 | ||
Weighing Range & Accuracy of Aggregate (kg) | (300~1500)±2% | (300~1500)±2% | (300~3000)±2% | ||
Weighing Range & Accuracy of Cement (kg) | (100~300)±1% | (100~300)±1% | (250~900)±1% | ||
Weighing Range & Accuracy of Water (kg) | (60~150)±1% | (60~150)±1% | (80~300)±1% | ||
Weighing Range & Accuracy of Additive (kg) | / | (8~20)±1% | (8~20)±1% | ||
Overall Weight (ton) | ≈15 | ≈22 | ≈26 | ||
Installation Power (kW) | ≈61 | ≈73 | ≈92 | ||
Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase |
