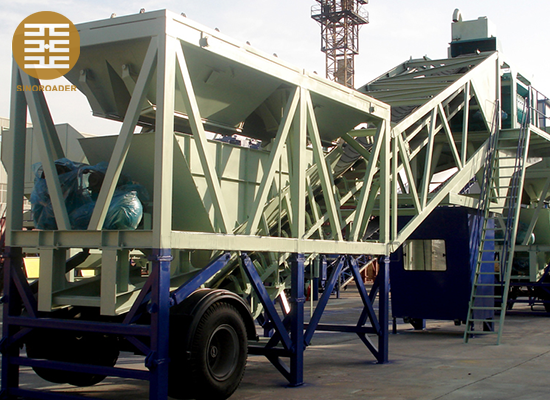

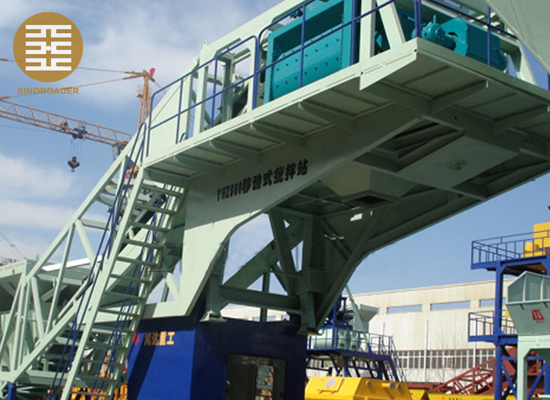

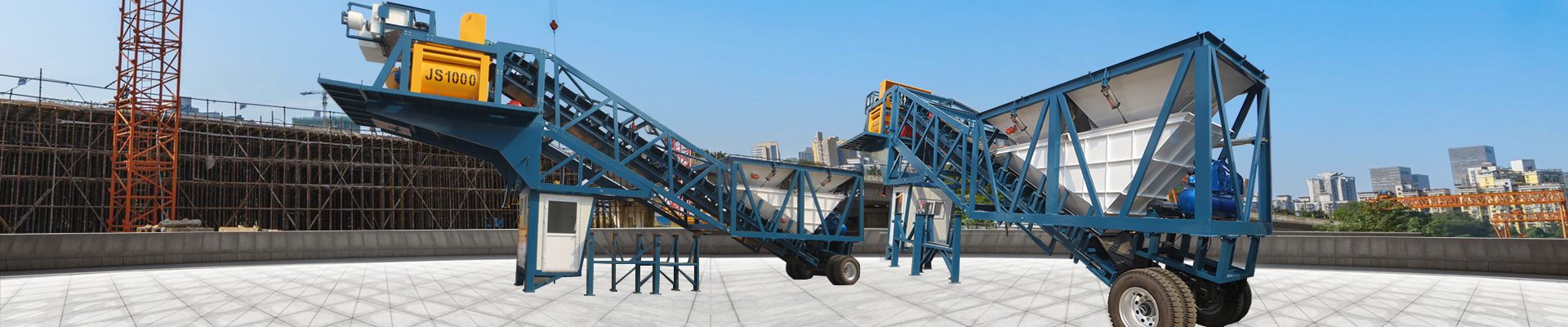

The YHZS series trailer concrete batching plant is suitable for construction of buildings, highway, high-speed railway, ports, bridges, airport sand hydro power. The trailer mobile concrete batching plant is designed by us for the need of mobile construction.
The batching plant combines all mixing plant equipment such as concrete mixer, batching system, weighing system, cement warehouse and screw conveyor, and install on chassis, which make the plant easy to install, can be put into construction without commissioning. Perfect stability and mobility quality it to be an ideal model in the mobile constructing of roads, bridges, ports and hydroelectric projects.
1. Simple and compact structure, many concrete mixing plant parts fasten in one unit.
2. Adopting advanced components, electric parts and operation parts.
3. More humanized operation, mobile concrete mixing plants can work even in bad environment.
4. Mobile concrete mixing plants adopt efficient twin shaft compulsory concrete mixer, which can ensure the production quality and efficiency.
5. Faster to assemble and disassemble, convenient to transit.
6. controlling room: controlled by computer with whole auto-operate, with the 16 years experience, the controlling procedure is designed perfectly. and the system needn't professional to operate. the people who get simple training can operate.
|
Model |
YHZS-25 |
YHZS-35 |
YHZS-50 |
||
|
Theoretical Productivity (m³/h) |
25 |
35 |
50 |
||
|
Mixer Model (Mixer Output L) |
JS500 |
JS750 |
JS1000 |
||
|
Mixer Power (kW) |
18.5 |
30 |
2×18.5 |
||
|
Mixing Cycle Period (s) |
67 |
72 |
72 |
||
|
Rated Input Volume (Model of Batching Machine L) |
800 |
1200 |
1600 |
||
|
Max.Aggregate Size (mm) |
Φ60 |
Φ60 |
Φ60 |
||
|
Standard Aggregate Bin Capacity (m³) |
2×3 |
2×5 |
3×5 |
||
|
Category of Aggregate |
2002/3/4 |
||||
|
Powder Storage Silo (ton) (Optional) |
1×50 |
2×50 |
1×100 |
||
|
Max. Discharging Height (m) |
3.8 |
3.8 |
4.1 |
||
|
Weighing Range & Accuracy of Aggregate (kg) |
（300~1500）±2% |
（300~1500）±2% |
（300~3000）±2% |
||
|
Weighing Range & Accuracy of Cement (kg) |
（100~300）±1% |
（100~300）±1% |
（250~900）±1% |
||
|
Weighing Range & Accuracy of Water (kg) |
（60~150）±1% |
（60~150）±1% |
（80~300）±1% |
||
|
Weighing Range & Accuracy of Additive (kg) |
/ |
（8~20）±1% |
（8~20）±1% |
||
|
Overall Weight (ton) |
≈15 |
≈22 |
≈26 |
||
|
Installation Power (kW) |
≈61 |
≈73 |
≈92 |
||
|
Power Supply |
380V/220V/415/440V, 50/60HZ, 3Phase |
||||
